Web Console for Edge Nodes

Visit Web Console Page from ARO Dashboard​

The ARO Dashboard provides access to the Web Console for managing your Edge Nodes.

On the All Nodes -> Node Detail page, locate the "Web Console" button in the top-right corner.

Note: You can only access the Web Console when your device and your ARO Dashboard are on the same local area network (LAN).

View device information in this tab. Device Information

Configure IP settings in this tab. IP Configuration

Monitor network status in this tab. Network Status

Restart your device directly in this tab. Device Restart

Configure Network Interface Card in Web Console​

Web Console supports configuring NIC (Network Interface Card) directly on the webpage for your ARO Client.

In the Network Settings tab, you can choose to insert/add a new configuration record (if empty), or edit in an existing record.

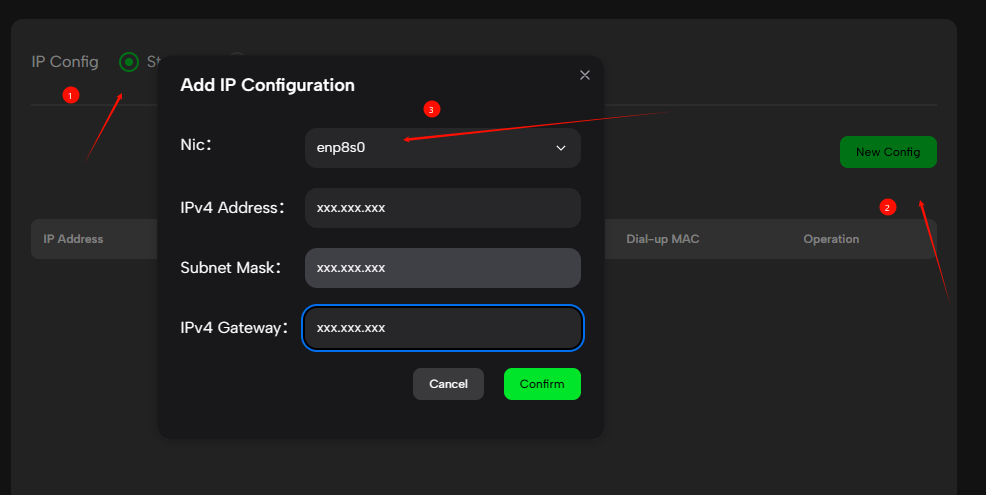

NIC1

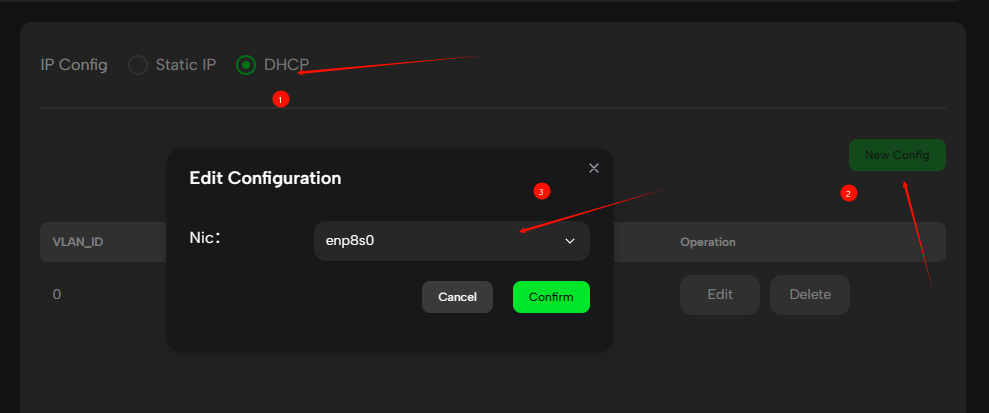

NIC2

In the example above, if you set enp8s0 in the NIC field, enp8s0 will be the NIC for PCDN workload.

Make sure you have correctly configured the Subnet Mask and IPv4 Gateway fields, or the NIC may fail to operate.
